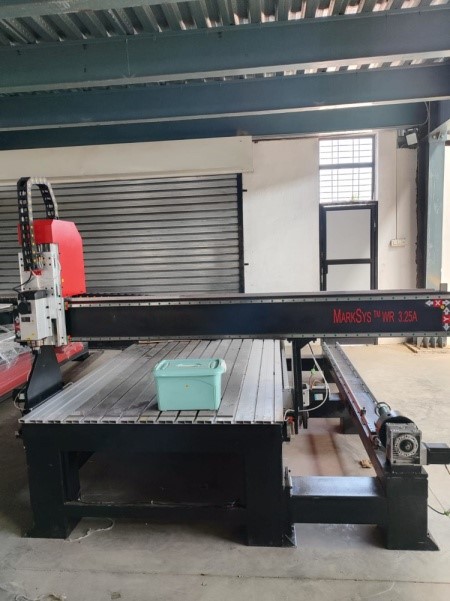

| Model | MarkSys CNC Router ER13.25 |
| Working Area (mm) | 1300mm X 1300mm |
| Control System | DSP A11 / NK 105 |
| Side | With Side Rotary |
| Rotary Chuck | 200mm |
| Guide Rail | 20mm /25mm Linear Square Guide Rails |
| Motor | Stepper / Servo |
| Drives | Leadshine / Yacotech |
| Spindle Power | 3.5Kw/ 4.5Kw/ 5.5Kw/ 6Kw |
| Axis | (X,Y,Z) |
| Z Axis | 200mm |
| Spindle | Air Cooled /Water Cooled |
| Working Table | Aluminium Profile With T-slot |
| Work Voltage | AC 220/380Volt/50Frequency Single Phase / 3Phase |
| Transmission System | Rack and Pinon (Helical) |
| Optional Device | Servo Stablizer / Dust Collector |
